Accurate measurements of your old door cut down undue delays, help you receive a precise quote for a new door, and ensure a perfect fit for your space. Read on to learn more about how to measure front doors, their key components, the tools you need, and other tips that will make the process much easier.
Tools Needed

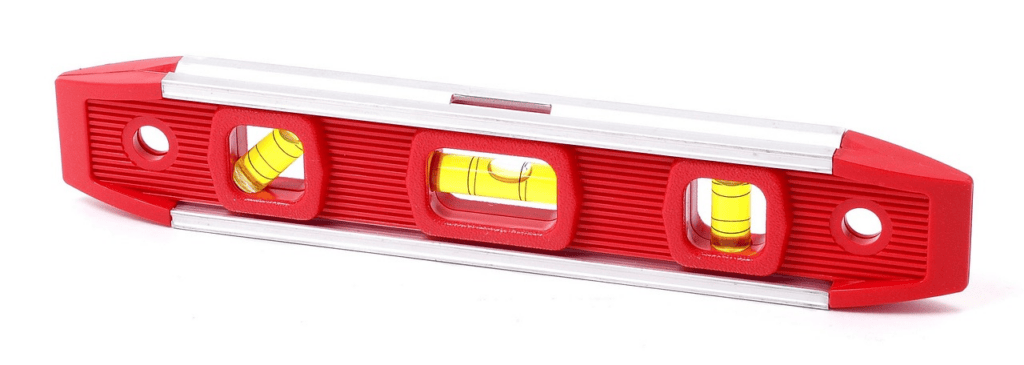

The first thing you should do is to prepare your door measurement tools. All you’ll need is a retractable tape measure, both 6-foot and 2-foot levels for checking vertical and horizontal alignment, a notepad for recording measurements, and a pencil. Having a flashlight handy will help you inspect shadowed areas of the frame.
Understanding Door Components
Understanding what needs to be measured starts with knowing the entryway’s structure. Once you grasp the layout, it becomes much easier to take accurate front door measurements and communicate your order to a professional home renovation contractor.
Luckily, the structure of an entryway system is simple and comprises three chief parts: the panel, the frame, and the jamb. Let’s break down each component.
Door Panel
A panel is a central part of the door that swings open. Measuring this part accurately ensures it is the right size for the frame. Simple panels have a solid single-piece structure with standard widths ranging from 30 to 36 inches and heights from 78 to 80 inches. The materials used for panels can vary widely, including wood, glass, metal, or composite materials.
Door Frame
A door frame is a rectangular structure that surrounds the opening into which the panel fits. In standard residential construction, a frame typically has a minimum depth of 4-9/16 inches to accommodate standard wall thickness. It includes essential components: the head (or header), jambs (the vertical sides), and the sill (the bottom part). The head provides structural support, while the jambs guide the entryway’s movement and house the hinges. The frame can be constructed from various materials, such as wood, aluminum, or steel.
Jamb Depth
The jamb runs vertically up either side of the door frame. This is where the hinges are attached to hang the panel. The jamb depth typically ranges from 4-9/16 to 6-9/16 inches and is crucial for ensuring that the door hangs properly and operates smoothly. The jambs also play a role in supporting the panel and maintaining its alignment within the frame.
Measuring a Single Front Door
If you have a single front door, pay attention to four critical metrics: the panel’s width, height, thickness, and the jamb depth. Knowing just these few measures will kick-start your door replacement project. No matter what you’re measuring, remember to hold the tape measure taut for the most accurate results.
Width Measurement
Begin with measuring the panel’s width from the internal side of the door. To minimize error, take a three-step approach:
- At the top, place your measuring tool horizontally between the inside edges of the door jambs. Standard rough openings are typically 2 inches wider than the door panel.
- Find the distance between jambs at the middle height.
- Record the span from jamb to jamb at the bottom. Measurements should be within 1/8 inch of each other for a properly squared frame.
Height Measurement
To measure the height of the panel, stick with a similar three-step procedure:
- Start measuring front doors from the top edge, where the panel meets the frame, down to the bottom.
- Repeat this measurement at both the middle and bottom.
- Compare the results and use the smallest number.
Thickness Measurement
Standard exterior door thickness is 1-3/4 inches, though premium security doors may reach 2-1/4 inches. To measure the panel thickness, it’s a good idea to check at a few different points along an unobstructed edge — just make sure to steer clear of any hardware, weatherstripping, or decorative elements. Start by measuring at the top edge of the door, then take a measurement at the middle, and finally check the thickness at the bottom edge.
Jamb Depth Measurement
When the three measurements — the panel’s width, height, and thickness — are noted down, it’s time to proceed to the fourth metric on the list.
An accurate jamb depth measurement is what gets the entryway swinging smoothly. Incorrect numbers could make installing the hinges, panel, and lockset difficult. To measure the depth of this part, you have to find out how deep the wooden frame where the door sits goes. Keep in mind that you might need to remove the interior trim around the entryway to access the full depth of the jamb. This way, you’ll get the most accurate results.

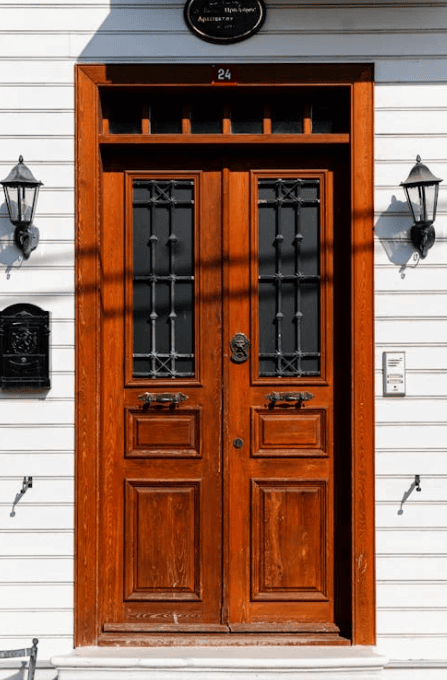

Measuring a Double Front Door
For a double door, take measurements from the interior side. This provides access to the true opening dimensions between jambs, unobstructed by exterior trim, casing, or weatherstripping. It also allows you to account for how the panels interact at the meeting stiles with a typical overlap of 1/8 to 3/16 inch at the astragal. Follow these steps to capture all you need, even the smallest dimension, for measuring front doors with double panels.
- Width: To find the width of the existing door, place the tape measure on one side of the door and extend it to the other across both panels. It is a good idea to measure two units separately, one at a time.
- Height: For height, stretch the tape measure from the head jamb to the threshold. Use the same three-step approach to ensure the utmost precision.
- Thickness: Measure door thickness at multiple points (top, middle, bottom) away from hardware and weatherstripping.
Measuring Front Doors with Sidelights or Transoms
If you have an entry door (single or double) with sidelights and/or transoms, begin by measuring the panel(s) using the steps outlined above. Then proceed with the additional components:
- Sidelights: Take width readings at three points between the inside edges of the jambs framing each sidelight; standard widths range from 10 to 14 inches, while rough openings add 2 inches. For height, measure vertically from the head jamb to the sill at the left side, center, and right side. Use the smallest value for each dimension.
- Transoms: Follow the same three-point approach for both width and height measurements. Record the horizontal span between jambs and the vertical distance from the head jamb to the door/sidelight door frame below. Common heights range from 12 to 36 inches, with quarter-round transoms typically measuring 1/4 of the door width. Allow for 1/8-inch clearance between the transom and frame for proper operation.
Keep all measurements separate and clearly labeled for each component.
Assessing Door Square and Level
To check if your exterior doors are square, measure diagonally from one corner to the opposite corner of the frame. Then measure between the other opposing corners. Your frame is acceptably square if these front door measurements are within 1/8 inch of each other.
To assess level:
- With the door open, place a 6-foot level against the hinge jamb. The bubble should center between the reference lines.
- Repeat on the lock jamb side.
- Use a 2-foot level horizontally on the head jamb and sill to verify they’re level.
Common Measurement Mistakes to Avoid
When getting the measurements for a replacement door or a new front door, keep an eye on a few common pitfalls:
- Not triple-checking dimensions: Take the width and height measurements at three points as described above, using the smallest measurements if they vary. A panel that’s too small will allow air infiltration around the edges.
- Not removing the trim: To measure jamb depth accurately, expose the door frame by temporarily removing a section of trim.
Frequently Asked Questions
What tools do I need to measure my front door?
To measure your front door accurately, you’ll need several essential tools: a retractable tape measure for dimensions, both 6-foot and 2-foot levels to check plumb and level conditions, a notepad and pencil to record measurements, and a flashlight to inspect darker areas around the frame. Having a helper can also improve accuracy.
Can I measure my door without removing the trim?
No, measuring with the trim in place can lead to significant errors. You must remove at least a small section of the interior trim to access the rough opening and accurately measure the jamb depth. This ensures you account for the true structural opening rather than just visible dimensions.
What should I do if my door measurements don’t match standard sizes?
If your measurements don’t align with standard door sizes, you’ll need to order a custom door to ensure proper fit and operation. It can increase cost and lead time, but this is essential for proper sealing and security.
Concluding Remarks
While this guide outlines the key steps of how to get accurate front door measurements, each entryway presents unique challenges — from historical homes with non-standard dimensions to modern entries with complex sidelight and transom configurations.
